Abbey Bike Tools Bearing Press w/Handles

Abbey Bike Tools Bearing Press w/Handles
  • Color: Green/Silver

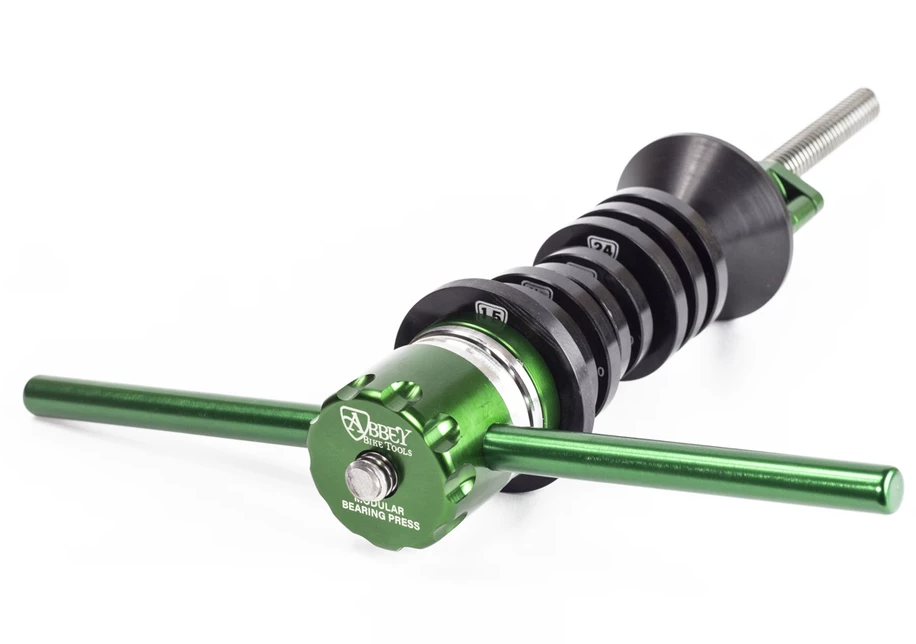

Instead of making a press for hubs, another for bottom brackets, and a third for head tubes, we covered all three with one modular press system. The modular system consists of a press head, press shaft, shaft extension, and our patent-pending split nut. This keeps the press manageable for hubs and bottom brackets and allows you to extend the press for tall head tubes.

One of the most unique things about our press is the Split Nut. It's basically a nut that's cut in half and held close by industrial magnets. The hinged unit allows you to place it anywhere on the press shaft with no need to wind it down endlessly to press in a bearing. It also takes care of the pinch hazard that some other presses are known for.

The press head features a large ball thrust bearing. This keeps the press action super smooth and cuts down on the effort required. This handled version receives a pair of 4.5" (115mm)-long handles.

Drifts included: PF-30, Shimano press fit, GXP press fit, 1.5" headset, 1.125" headset, centering cone. Drifts can be custom made as needed for specific applications.

Part Numbers

Option UPC MPN
Green/Silver 739189837731 FRM-STD-MODBRGPRS-HN
